Vendor: Ace Cutting

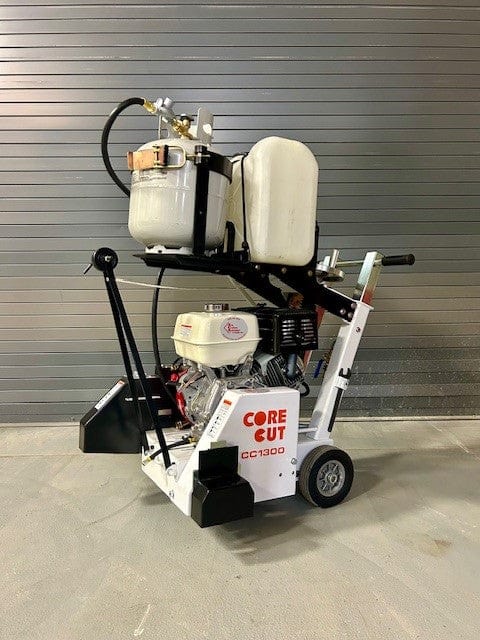

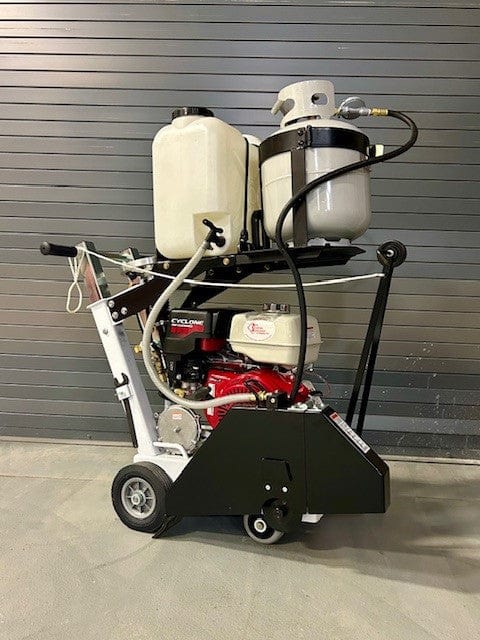

CC1300XL Propane Core Cut Walk Behind Saw

Regular price $6,532.00
Regular price Sale price $6,532.00
Sold out
Shipping calculated at checkout.
Sku: 5800723-P

View full details
CC1300XL Propane Core Cut Walk Behind Saw
CC1300XL Propane Core Cut Walk Behind..

$6,532.00

Additional Info

DIAMOND PRODUCTS CC1300XL PROPANE CORE CUT SAW

BLADE AND WATER TANK NOT INCLUDED, AVAILABLE SEPARATELY

Propane Saws

  • Empty propane tank included for shipping reasons
  • Catalytic Converter (Scrubber) optional add-on for added stage of filtration from exhaust, contact for more details
  • Dual fuel, propane and gas powered.  Easily activated by switch from one fuel system to the other

Features & Benefits

  • Heavy duty frame design
  • Easy to maneuver push drive
  • Four position heavy duty handles
  • Solid sealed and self aligning blade shaft bearings
  • Slip-on blade guard for easy blade access
  • Three V-belts for extra power delivery to the bladeshaft
  • Left or right side sawing
  • Optional water tank available

Core Cut CC1300 is the best option for a small portable push saw if a strong, durable frame is important.  Crank raise / lower is reliable and easy to turn, holds up to 20" blade for nearly 8" depth of cut. Optional water tank option for dust suppression and extending blade life.

CC1300XL SPECIFICATIONS

Max blade diameter, in 20"
Max depth of cut, in 7-5/8"
Average bladeshaft, RPM 2,600
Weight, lbs 365

Max depth of cut with 14" blade4-5/8"
Max depth of cut with 18" blade6-5/8"
Max depth of cut with 20" blade7-5/8"
Blade shaft RPM2,600
Blade shaft diameter1-1/4"
Arbor size1" with single drive pin
Blade mountingRight or left
Blade raise / lowerPrecision screw feed
