Vendor: Diamond Products

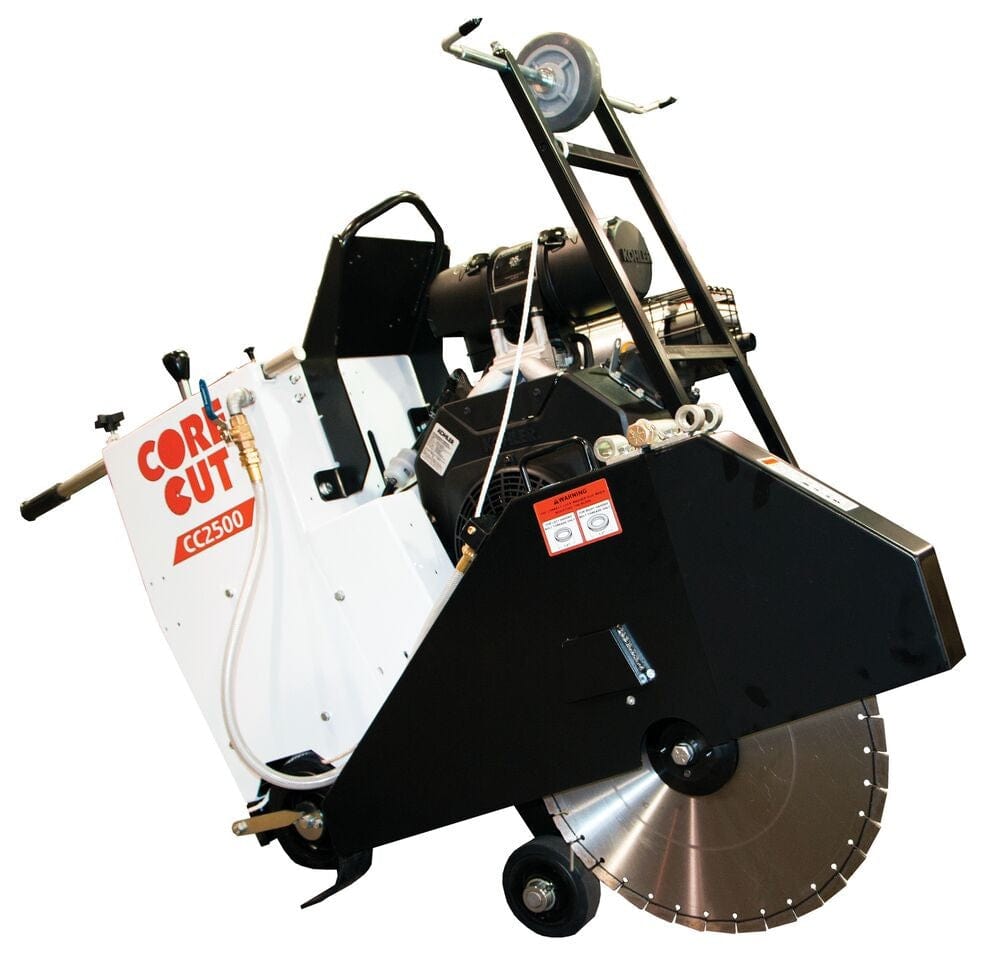

CC2500 Electric Self Propelled Core Cut Walk Behind Saw

$11,869.00
$11,869.00
Sold out
Shipping calculated at checkout.
Sku: 5800400A

This mid-size self-propelled electric saw comes standard with a crank raise and lower assembly with optional hydraulic control switch. Ability to hold up to a 26" blade with max 10-3/8" cutting depth. Delivers the power of a large saw in a compact frame!

Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
CC2500 Electric Self Propelled Core Cut Walk Behind Saw
CC2500 Electric Self Propelled Core Cut..
Caret Down

Additional Info

DIAMOND PRODUCTS CC2500 ELECTRIC CORE CUT SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits

  • Rigid high strength 3/16” steel box frame with heavy bar reinforcement
  • 2 position tilt handle bars
  • Screw feed raise and lower with optional power raise / lower
  • Two position tilt handle bars
  • Positive gear drive to rear axle via Eaton hydrostatic transmission
  • Frame lift
  • Cutting depth indicator
  • Made in the USA!

CC 2500 SPECIFICATIONS

Horsepower, hp 15 15 15
Voltage, v 230v 460v 460v
Power supply, phase 3-phase 3-phase 3-phase
Motor Amps 36 18 18
Blade guard, in 14" 20" 26"
Max depth of cut 4-5/8" 7-3/8" 10-3/8"
Weight, lbs 670 700 705

Max depth of cut with 26" blade10-3/8"
MotorLeeson 15 HP
Blade shaft RPMVaries
Blade shaft diameter1-1/2"
Arbor size1" with single drive pin
Blade shaft drive4 belts
Blade mountingRight or left
TransmissionEaton Model 6
Drive speed0-130 feet per minute
Blade raise / lowerPrecision screw feed

CC2500 Spec Sheet

CC2500 Parts List
