Vendor: Diamond Products

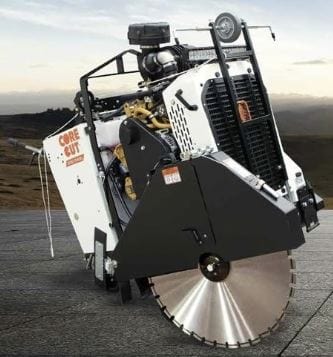

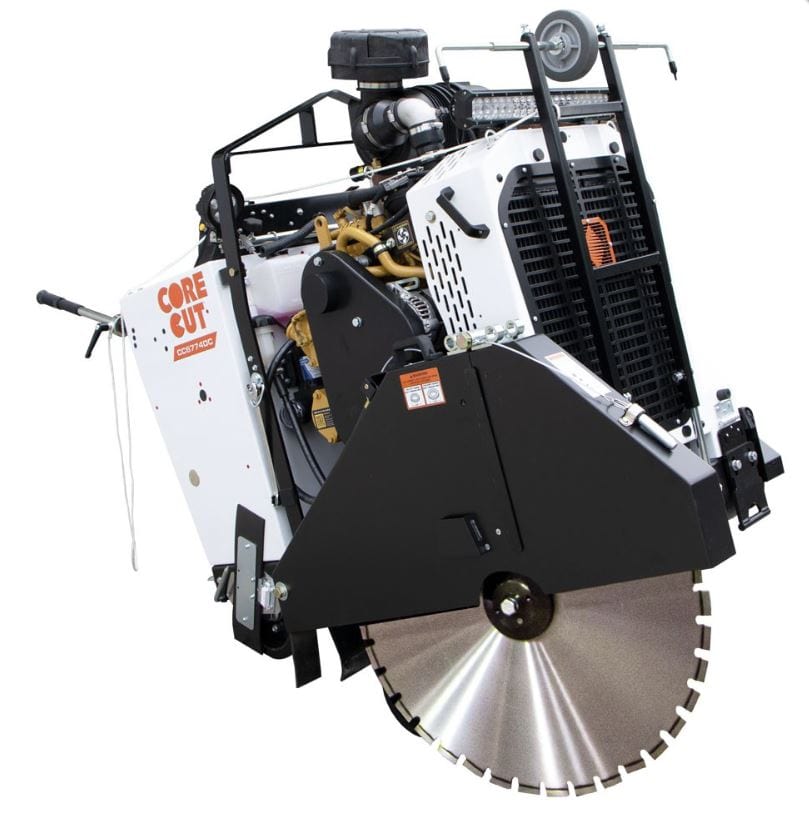

CC6774DC Diesel Core Cut Walk Behind Saw

$44,645.00
$44,645.00
Sold out
Shipping calculated at checkout.
Sku: 5801560

CC6774DC uses the latest in engine technology from Caterpillar to produce a high production saw with the trusted reliability of CAT Power all while meeting Tier 4 emissions compliance. CAT C2.2 engine delivers 74 HP and a staggering 199 ft-lbs of torque thru 10 drive belts and 2" diameter blade shaft to cut thru the hardest of aggregates and oversized reinforcement steel. Designed for the professional cutter, the CC6774DC boasts features like single bolt belt tensioning and a front hinged quick access belt guard allowing for fast and easy belt maintenance. Enhanced digital color display allows operator to monitor critical feedback like engine speed and oil pressure in direct sunlight.

Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
CC6774DC Diesel Core Cut Walk Behind Saw
CC6774DC Diesel Core Cut Walk Behind..
Caret Down

Additional Info

DIAMOND PRODUCTS CC6774DC CORE CUT SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

Features & Benefits
  • Certified UE Stage V Engine-Clean reliable power with Caterpillar's latest engine technology

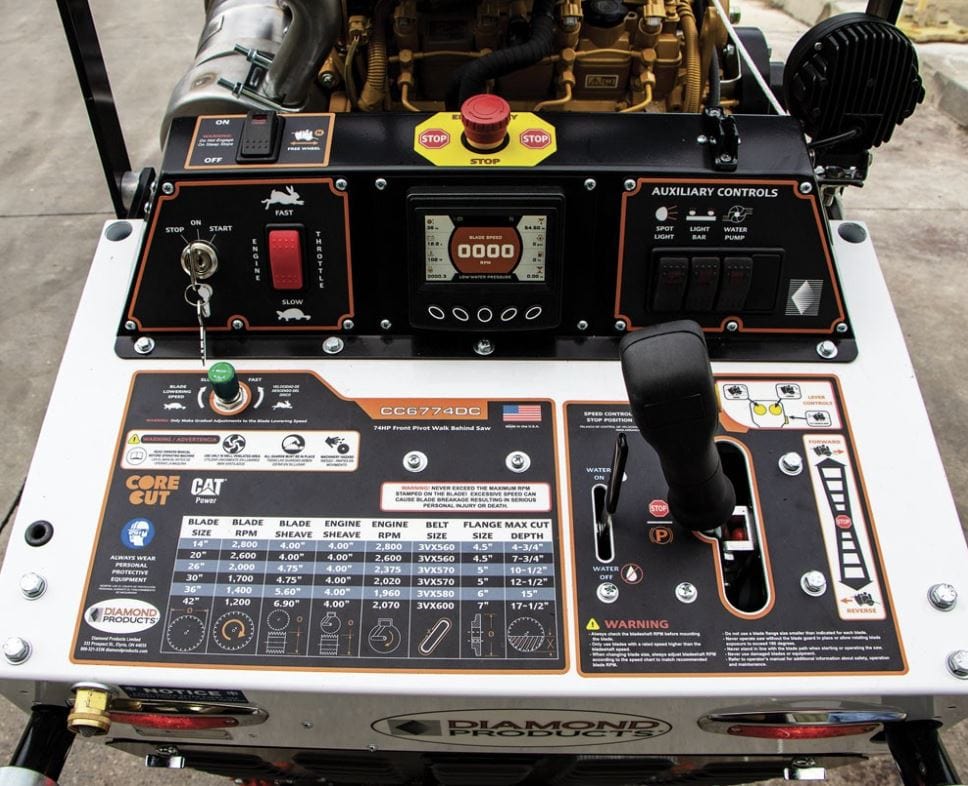

  • Advanced Digital 4" Display-Enhanced rich color graphics for superior visibility in sunlight
  • Critical Diagnostics-Computer monitored functions alerts potential problems to avoid shutdown
  • Blade Overspeed Alert-Warns of blade rpm exceeding safe limit
  • Engine Service Alerts-Maintenance reminders for optimum engine function
  • Digital Depth Indicator/Stop-Accurate sawing depth stop with easy pushbutton functionality
  • Adjustable Blade Lowering Speed-Dash mounted for precise adjustment
  • Central Water Control Valve-Panel mounted convenience
  • Single Hand Sawing Control-Forward/Reverse/Raise/Lower all in one ergonomic grip
  • Front/Rear Tie Down Rings-Safe secure points for transport
  • Automatic Parking Brake-Hydraulic activation in stop position gate
  • Simple Freewheeling-Convenient dash mounted switch activation
  • Quick Disconnect Flanges-Quickly detach stuck blade to minimize downtime
  • Single Bolt Belt Tensioning-Evenly adjust belt tension quickly
  • Easy On Easy Off Sheaves-Split taper quick disconnect sheaves evenly squeeze shaft to stay tight and run true
  • Easy Access Belt Guard-Hinged front access to quickly inspect drive belt tension/condition

Options

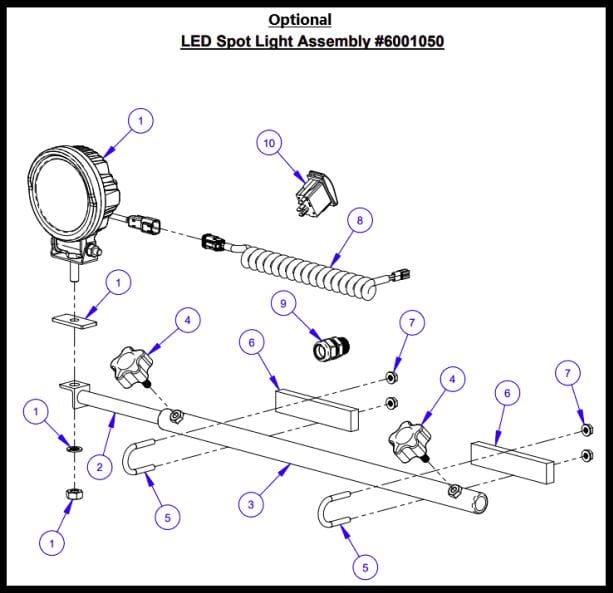

  • LED Lighting Package-Spot light, lightbar or both

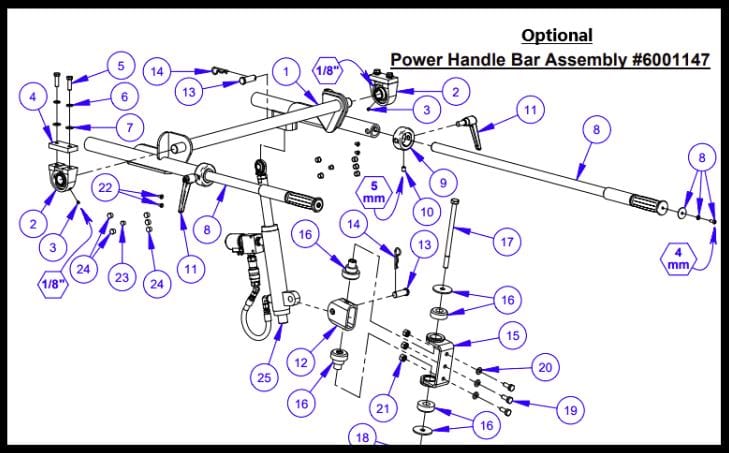

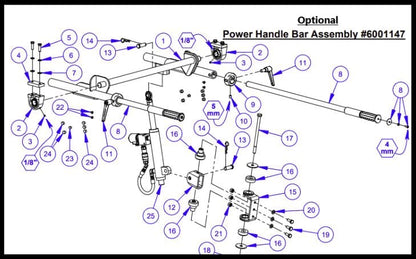

  • Quick Set Power Handlebars-Hydraulic actuated handlebar height adjustment

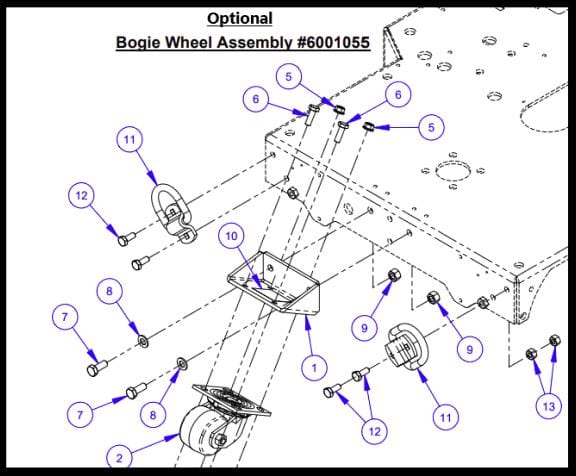

  • Bogey Wheel-Retractable rear 5th wheel eliminates lifting of rear of saw while turning



    CC6774DC SPECIFICATIONS

    Engine Brand/Model

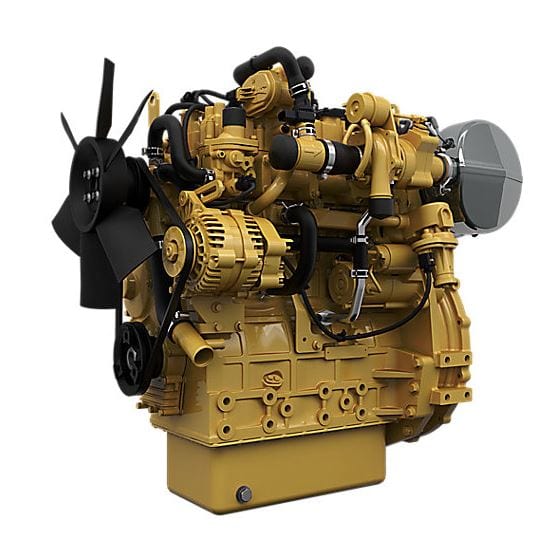

     CAT C2.2 (DITAAC)
    Engine Regulation Tier 4 / EU Stage V
    Max Engine Power 74 HP @ 2800 RPM
    Peak Engine Torque 199 ft-lbs @1600 RPM
    Aftertreatment Devise Diesel Oxidation Catalyst + DPF
    Engine Air Filtration Dual dry element with pre-cleaner
    Battery 12 volt group 24 size
    Starter/Alternator Electric 2.7 hp / 85 Amp
    Fuel Capacity 9 gallon

    Max depth of cut with 14" blade4.75" (4.5" flange)
    Max depth of cut with 20" blade7.75" (4.5" flange)
    Max depth of cut with 26" blade10.5" (5" flange)
    Max depth of cut with 30" blade12.5" (6" flange)
    Max depth of cut with 36" blade15" (6" flange)
    Max depth of cut with 42" blade 17.5" (7" flange)
    Blade Arbor Size1" diameter with drive pin
    Blade Flange TypeQuick disconnect
    Blade Shaft2" OD with L/R side mounting
    Blade Shaft Drive10 Kevlar V-Belts (3VX)
    Blade Raise-LowerElectro-Hydraulic power with push button
    Blade Depth Control
    		Electronic indicator and depth stop
    Drive Speed0-220 FPM (2.5 MPH)
    Rear Wheel TransmissionHydraulic pump driving dual hydraulic drive motors
    Parking BrakeAutomatic hydraulic lock at stop position
    Handlebar Adjustment3 position with variable extension
    Safety AlertsEmergency stop, blade over-speed, neutral start
    Front Wheel Dimensions8" X 3"
    Rear Wheel Dimensions10" X 3"
