Vendor: Diamond Products

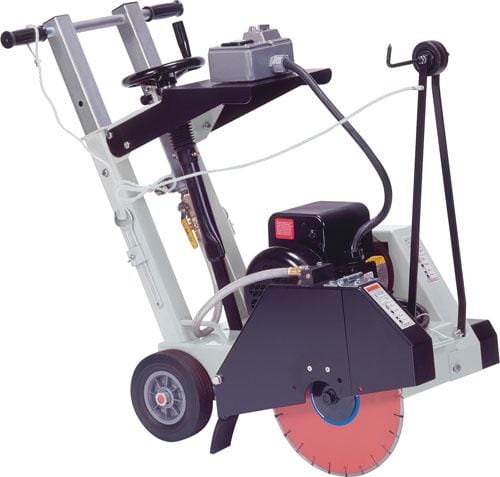

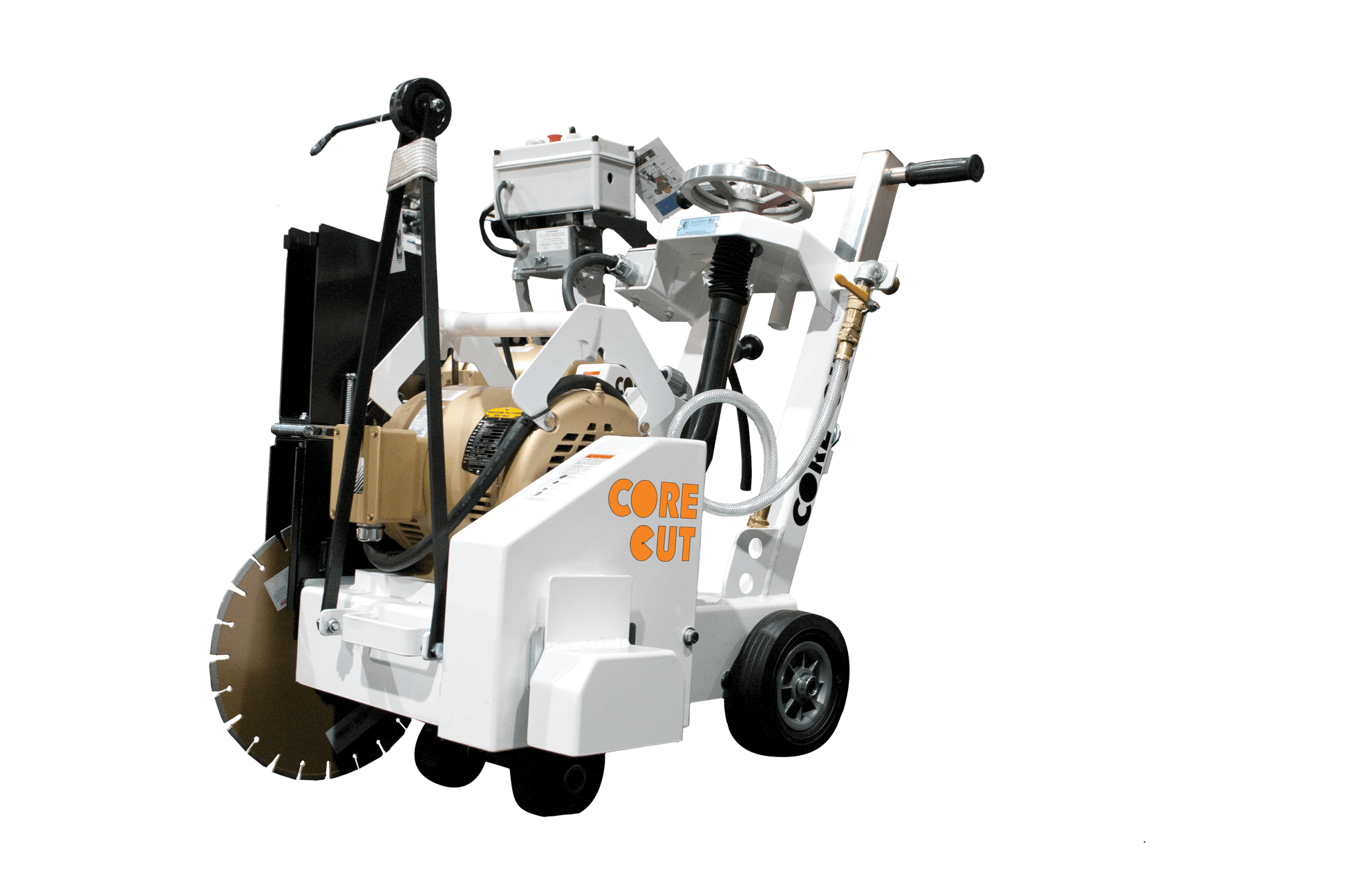

CC1300XL Electric Push Core Cut Walk Behind Saw

$5,415.00
$5,415.00
Sold out
Shipping calculated at checkout.
Sku: 5800577

Caret Down
Caret Down

Finance your Next Project

Click Here to Apply for Financing

View full details
CC1300XL Electric Push Core Cut Walk Behind Saw
CC1300XL Electric Push Core Cut Walk..
Caret Down

Additional Info

DIAMOND PRODUCTS CC1300XL ELECTRIC SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

NOTE: 20" BLADE GUARD ONLY AVAILABLE WITH 10 HP MOTOR

Features & Benefits

  • Heavy duty frame design
  • Easy to maneuver push drive
  • Four position heavy duty handles
  • Solid sealed and self aligning blade shaft bearings
  • Slip-on blade guard for easy blade access
  • Three V-belts for extra power delivery to the bladeshaft
  • Left or right side sawing

CC1300XL SPECIFICATIONS

Max blade diameter, in 20" 18" 14"
Max depth of cut, in 7-5/8" 6-5/8" 4-5/8"
Average bladeshaft, RPM 2,600 2,600 2,600
Weight, lbs

5 hp: 280

10 hp: 320

 255 250

Max depth of cut with 14" blade4-5/8"
Max depth of cut with 18" blade6-5/8"
Max depth of cut with 20" blade7-5/8"
Blade shaft RPM2,600
Blade shaft diameter1-1/4"
Arbor size1" with single drive pin
Blade mountingRight or left
Blade raise / lowerPrecision screw feed

CC1300XL Spec Sheet

CC1300XL Electric Parts List
