Vendor: Diamond Products

CC1800XL Hydraulic Self Propelled Core Cut Walk Behind Saw

$6,922.00

Sold out

Shipping calculated at checkout.

Sku: 5800647A

Core Cut's CC 1800XL medium hydraulic self propelled walk behind concrete saw is available with a 14" blade or a 20" blade and 7-5/8" max cut depth with a 20" blade. The CC 1800XL has a Danfoss hydraulic motor and is available in a 15, 20 or 25 GPM.

Quantity

View full details

CC1800XL Hydraulic Self Propelled Core Cut..

Additional Info

DIAMOND PRODUCTS CC1800XL HYDRAULIC SELF PROPELLED CORE CUT SAW

BLADE NOT INCLUDED, AVAILABLE SEPARATELY

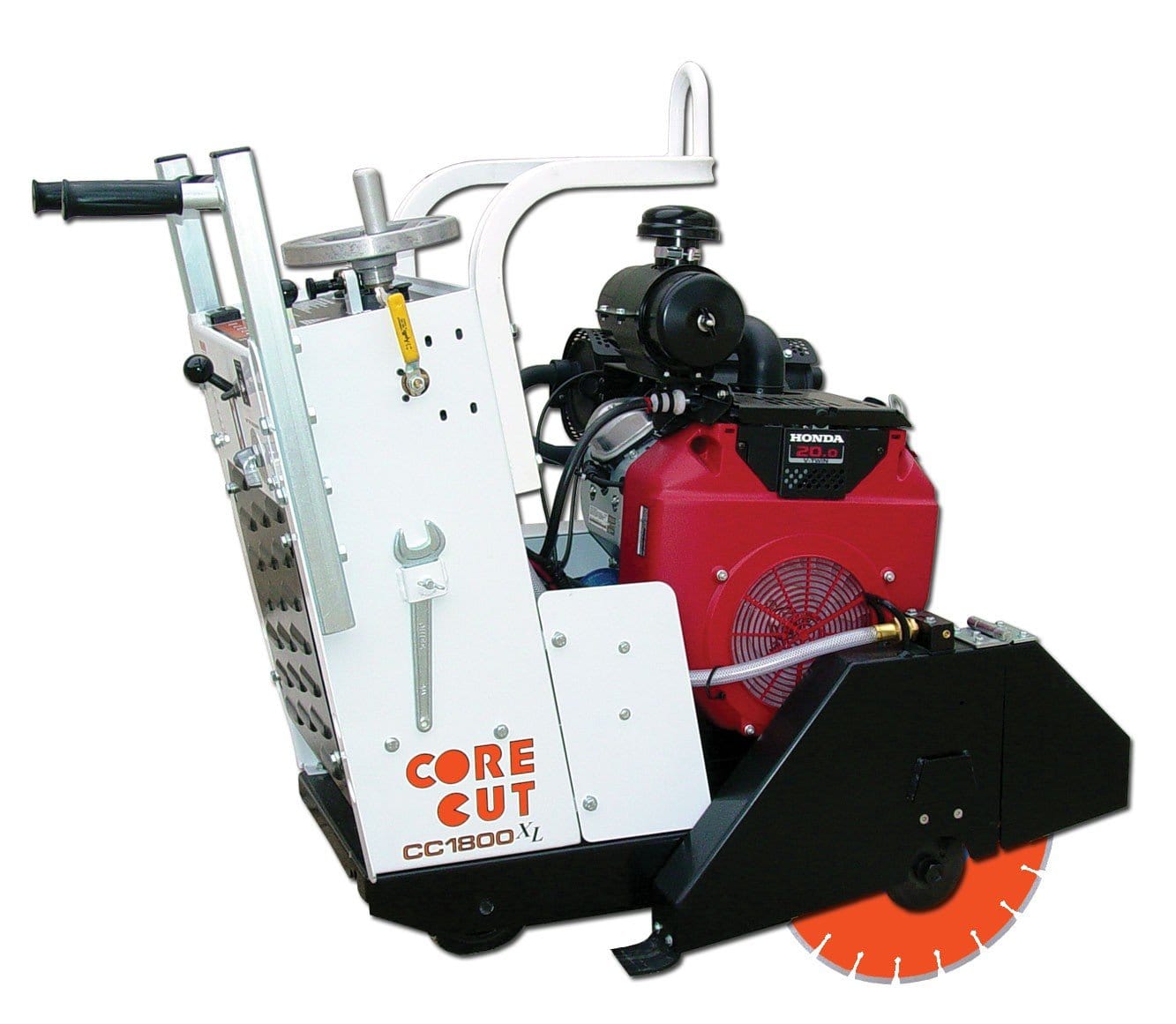

PICTURES SHOWS GAS MOTOR, HYDRAULIC IMAGE NOT AVAILABLE

Features & Benefits

Many power options to fit your applications
Screw feed raise and lower
Left or right side sawing
Lifting hook standard on all models
Self aligning blade shaft bearings
Made in the USA!

CC 1800XL SPECIFICATIONS

Motor	15 GPM	20 GPM	25 GPM
Power	18 hp	18 hp	18 hp
Drive	Self Propelled	Self Propelled	Self Propelled
Weight, lbs	300	300	300
Max depth of cut, in	7-5/8"	7-5/8"	7-5/8"
Bladeshaft, rpm	2,600	2,600	2,600

Max depth of cut with 20" blade	7-5/8"
Blade shaft RPM	2,600
Blade shaft diameter	1-1/4"
Arbor size	1" with single drive pin
Blade shaft drive	4 belts
Blade mounting	Right or left
Transmission	Eaton Model 6
Drive speed	0-80 feet per minute
Blade raise / lower	Precision screw feed

CC1800XL Spec Sheet

CC1800XL Hydraulic Parts List
