Vendor: Diamond Products
CC6571D Diesel Core Cut Walk Behind Saw
Regular price
$42,966.00
Regular price
Sale price
$42,966.00
Unit price
per
Shipping calculated at checkout.
Sku:
5801160
Notified by email when this product becomes available
CC6571D Diesel Core Cut Walk Behind..

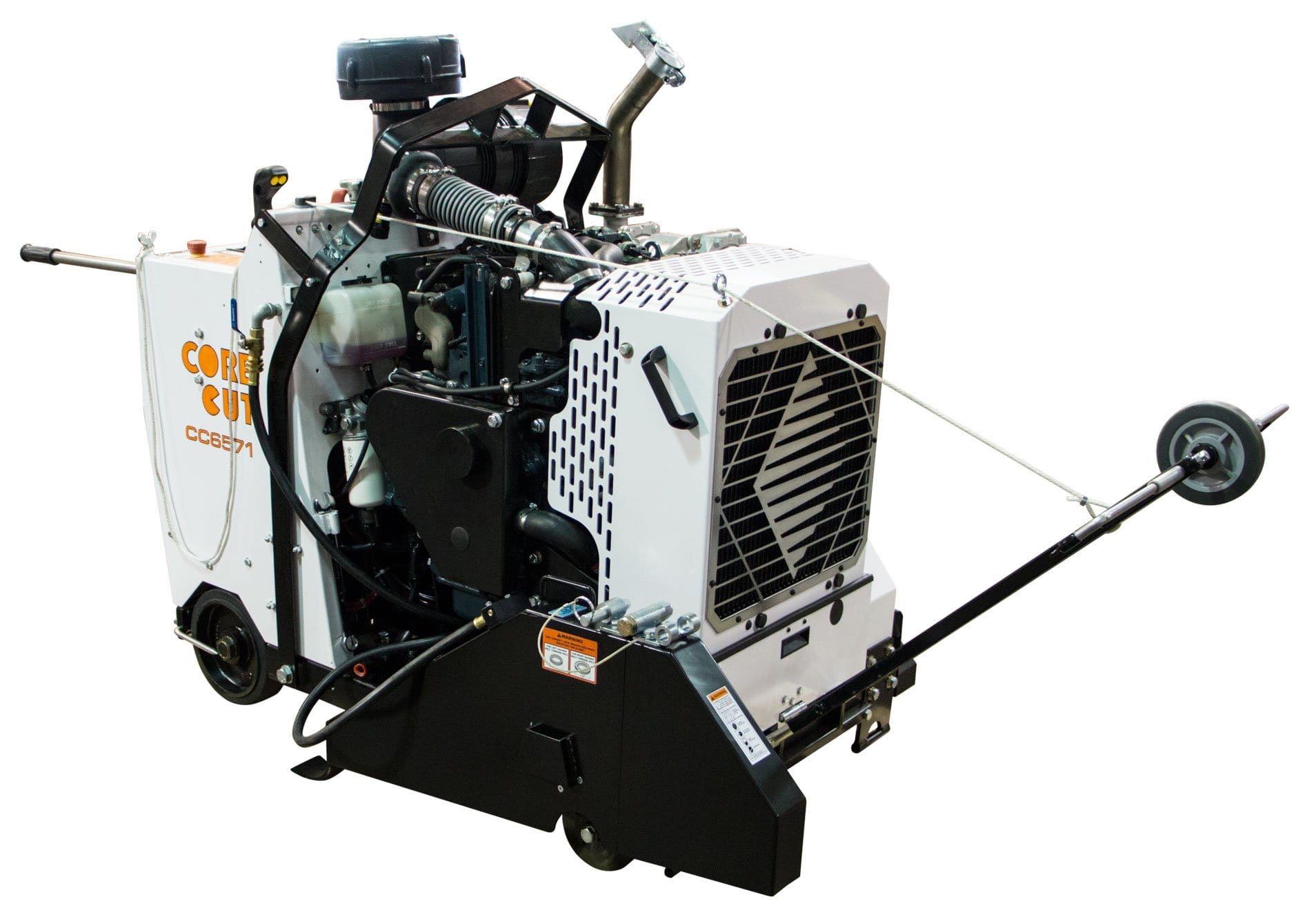

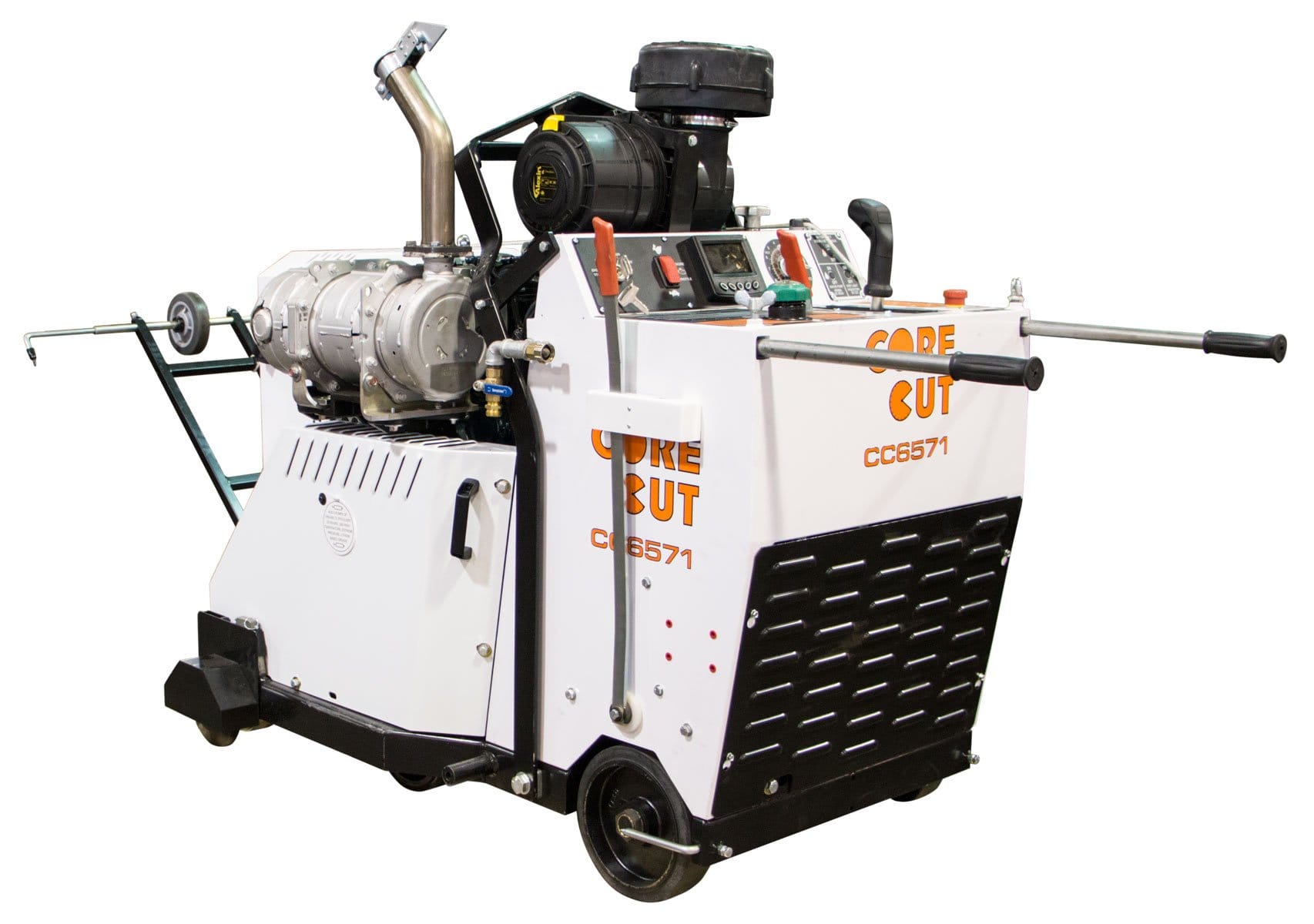

DIAMOND PRODUCTS CC6571D CORE CUT SAW
BLADE NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS
- Tier 4 Final liquid-cooled engine allows for a smoother running, longer lasting saw with higher productivity
- Strongest frame on the market
- Less rear weight for easy maneuvering and reduced operator fatigue
- Oil bath blade shaft comes standard
- One-hand sawing control and parking brake
- Fits through a 36” wide door frame (when guards removed)
- Quick release blade shaft / flange
- Blade shaft tachometer – where its needed – not at the engine, giving you true blade speed

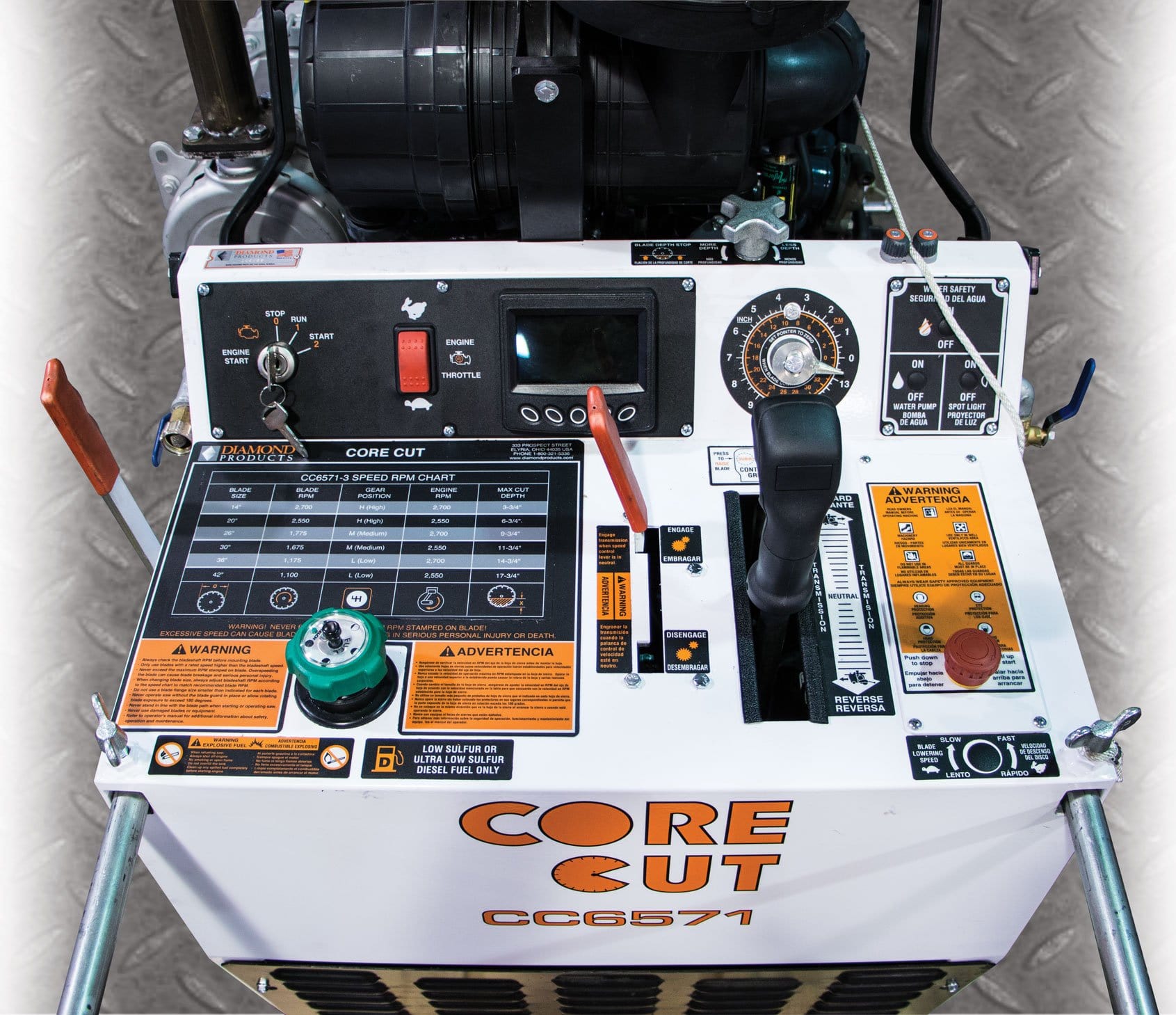

- Digital display control panel provides simple operation and complete access to diagnostic information
CC 6571D SPECIFICATIONS
| Horsepower | 71 hp |
| Motor | Kubota Turbo |
| Max depth of cut with 42" blade | 17-3/4" |
| Bladeshaft drive | 10 belts |
| Bladeshaft diameter | 2" |
| Weight, lbs | 1,855 |
| Max depth of cut with 14" blade | 4-1/2" (3-speed 3-3/4") |
| Max depth of cut with 20" blade | 7-1/2" (3-speed 6-3/4") |
| Max depth of cut with 26" blade | 10-3/8" (3-speed 9-3/4") |
| Max depth of cut with 30" blade | 12-3/8" (3-speed 11-3/4") |
| Max depth of cut with 36" blade | 14-3/4" (3-speed 14-3/4") |
| Max depth of cut with 42" blade | 17-3/4" (3-speed 17-3/4") |
| Engine | Kubota Turbo Diesel |
| Engine Model | V2607 Tier 4 |
| Cylinders | 4 |
| Blade shaft diameter | 2" |
| Arbor size | 1" with single drive pin |
| Blade shaft drive | 10 belts |
| Blade mounting | Right or left |
| Blade raise / lower | Electro-hydraulic pump |
| Transmission | Eaton Model 10 |
| Drive speed | 0-200 feet per minute |
| Air filter | 4-stage |
| Includes | Bladeshaft tachometer, Frame lift, parking brake, quick disconnect blade flanges, hour meter, telescoping front pointer, cutting depth indicator, oil bath bladeshaft |
