Vendor: Merit

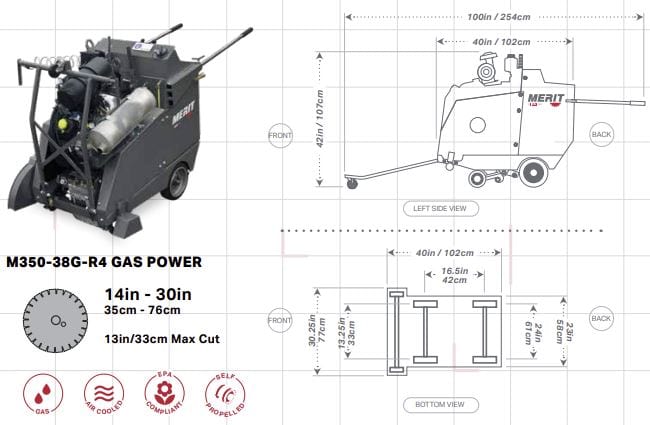

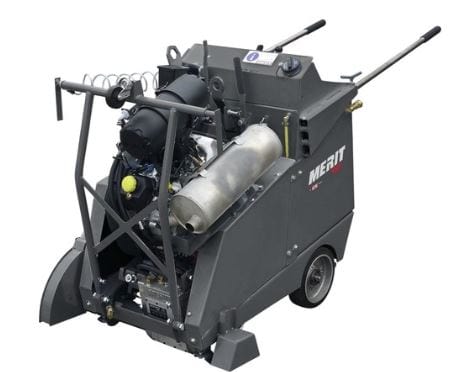

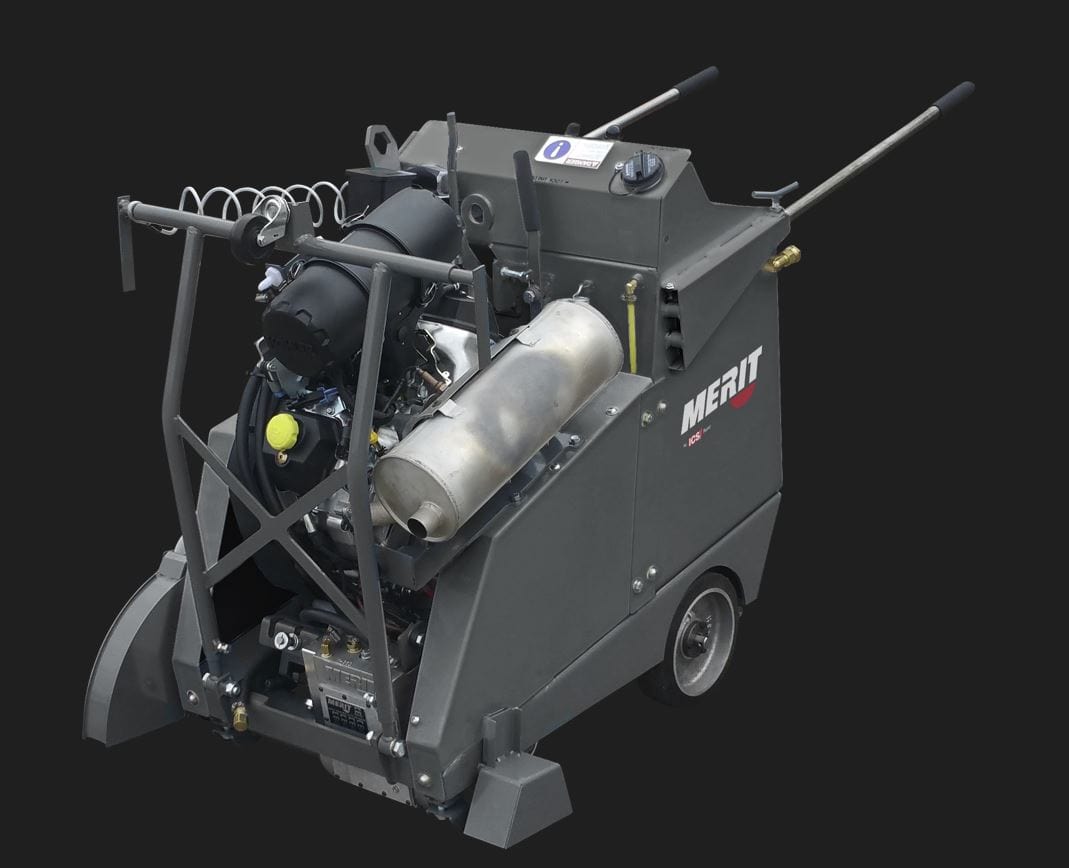

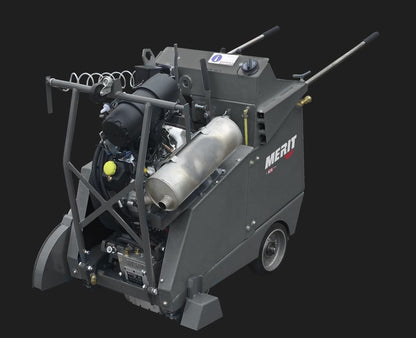

M350 38HP Gas Rear Pivot 4-Speed Merit Walk Behind Saw
Regular price
$26,175.00
Regular price
Sale price
$26,175.00
Unit price
/
per
Shipping calculated at checkout.
Sku:
M350-38G-R4
Merit M350 38hp gas walk behind saw. Powerful mid-sized saw that is great for service work, patch work and general cutting. 4-speed blade transmission allows end users to run blade sizes ranging from 12"-30" reaching a max cut depth of 12" deep. Rear pivot design allows superior maneuverability. Locking / Unlocking differential aids in straight cuts and tight rotations. Optional quick disconnect blade flange kit allows user to easily disconnect blade from saw if a blade jam occurs (crucial for patch work). Fuel injected 999cc engine starts up quick and offers improved fuel economy and emissions over carbureted versions. Integrated oil cooler extends engine and oil life.
Couldn't load pickup availability











Notified by email when this product becomes available

M350 38HP Gas Rear Pivot 4-Speed..
$26,175.00
Additional Info
MERIT M350 38HP GAS WALK BEHIND SAW
REAR PIVOT, 4-SPEED

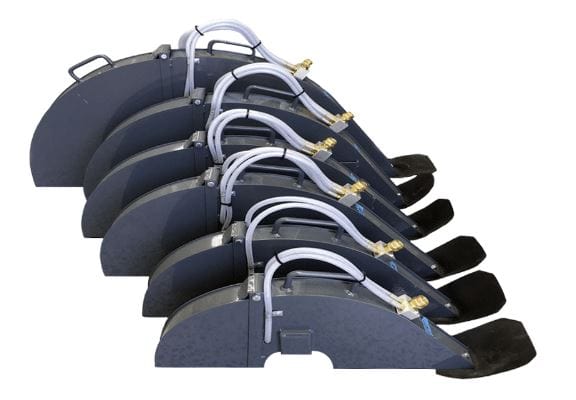

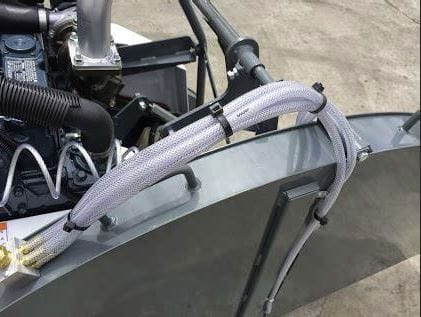

BLADE GUARD NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS

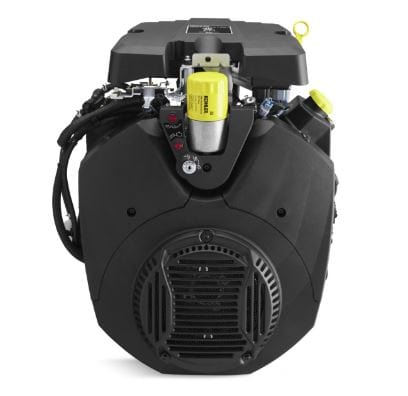

- Kohler 38hp fuel injected 999cc engine delivers smooth reliable power
- Self-propelled drive transmission

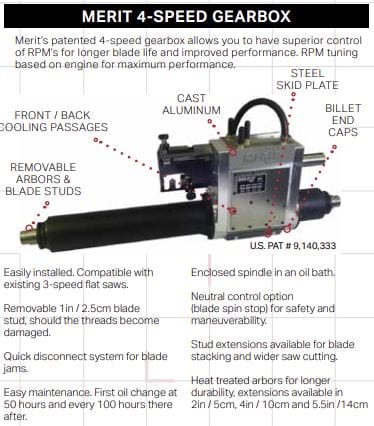

- 4-Speed blade transmission gives optimum blade speed for all conditions
- Fits through a 36" door frame
- Compact frame design

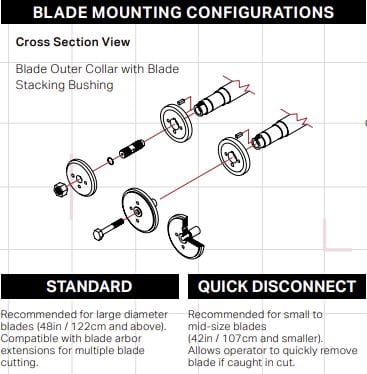

- Optional quick disconnect blade flange kit
- Rear pivot design allows superior maneuverability
- Locking / Unlocking differential aids in straight cuts and tight rotations
- Very low noise and vibration
M350 SPECIFICATIONS
Horsepower | 38hp |
Motor | Kohler ECH980 |
Max depth of cut with 30" blade | 13" |
Arbor diameter | 4" |
Bladeshaft drive | 10 belts |
Bladeshaft diameter | 1" |
Drive Speed, fpm | 0-240 |
Depth control | Mechanical |
Fuel capacity, gal | 6.5 |
Weight, lbs | 950 |

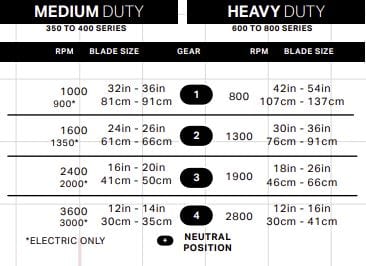

1st Gear Blade Size 1st Gear Blade Shaft Speed | 32"-36" 1000 RPM |
2nd Gear Blade Size 2nd Gear Blade Shaft Speed | 24"-26" 1600 RPM |
3rd Gear Blade Size 3rd Gear Blade Shaft Speed | 16"-20" 2400 RPM |
4th Gear Blade Size 4th Gear Blade Shaft Speed | 12"-14" 3600 RPM |
Blade shaft diameter | 2" |
Blade arbor size | 1" with single drive pin |
Arbor diameter | 4" |
Blade mounting | Right or left |
Blade raise / lower | Electro-hydraulic pump |
Transmission | Hydrostatic |
Drive speed | 0-240 feet per minute |
Air filter | 2-stage |
Weight | 950 lbs. |
