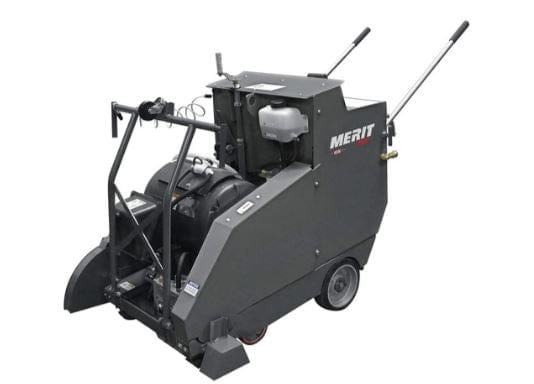

M400 30HP Electric Front Pivot 4-Speed Merit Walk Behind Saw

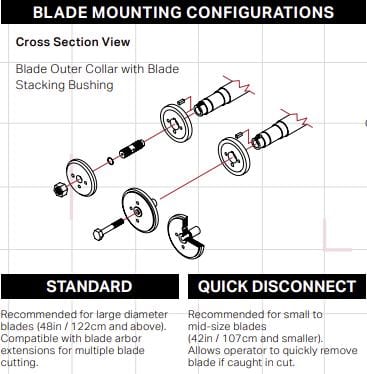

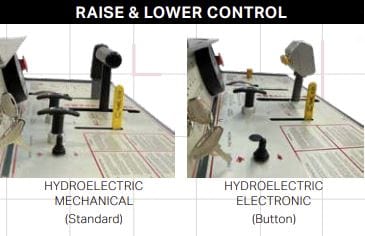

Merit M400 30hp electric walk behind saw. Powerful mid-sized saw that is great for interior cutting where fumes can be problematic. Baldor 30hp motor delivers instant torque to a 4-speed blade transmission. Multi-speed transmissions on electric saws allow blade shaft speeds to be optimized for chosen blade size. Gas/Diesel powered saws have the ability to "throttle down" for blade shaft speed adjustments. With electric saws not having that option, a multi-speed transmission on your electric saw is a huge advantage. Front pivot design allows easy maneuverability. Locking / Unlocking differential aids in straight cuts and tight rotations. Optional quick disconnect blade mount allows user to easily disconnect blade from saw if a blade jam occurs. Optional raise-lower controls give user the choice of a variable speed for precision or a push button control for speed and simplicity.
Couldn't load pickup availability









Notified by email when this product becomes available

Additional Info
MERIT M400 30HP ELECTRIC WALK BEHIND SAW
FRONT PIVOT, 4-SPEED

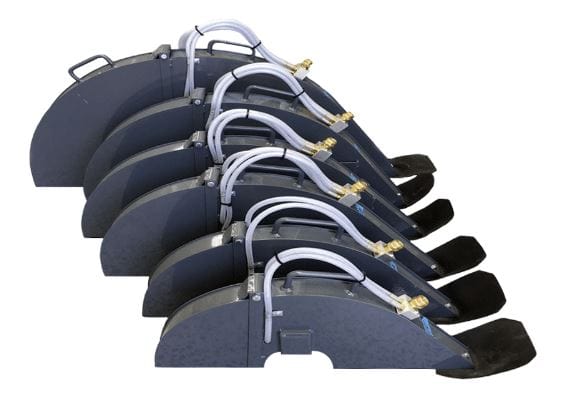

BLADE GUARD NOT INCLUDED, AVAILABLE SEPARATELY
FEATURES & BENEFITS
- Powerful Baldor 480v 3-phase motor
- Self-propelled drive transmission

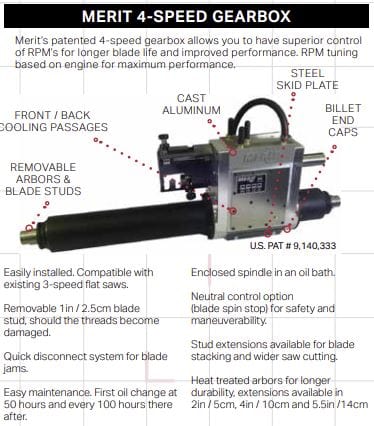

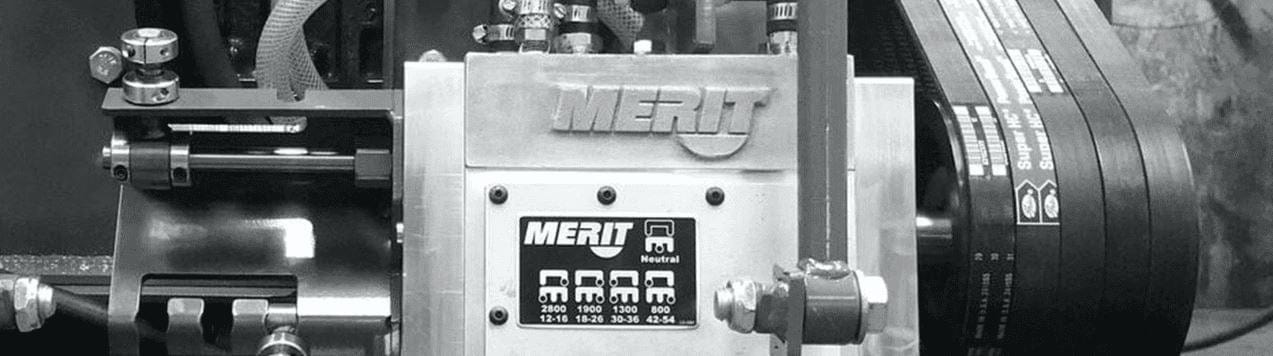

- 4-Speed blade transmission gives optimum blade speed for all conditions
- Fits through a 36" door frame
- Compact frame design
- Front pivot design allows easy maneuverability
- Locking / Unlocking differential aids in straight cuts and tight rotations
- Very low noise and vibration
- Zero emissions
- Light kit included

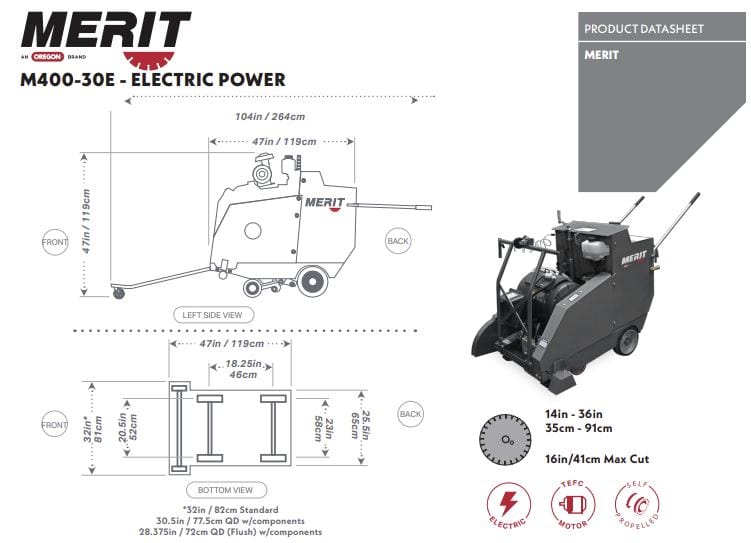

M400SS SPECIFICATIONS
Horsepower | 30 hp |
Motor | Baldor |
Max depth of cut with 30" blade | 13" |
Arbor diameter | 4" |
Bladeshaft drive | 10 belts |
Bladeshaft diameter | 1" |
Drive Speed, fpm | 0-240 |
Depth control | Hydraulic |
Weight, lbs | 1,100 |

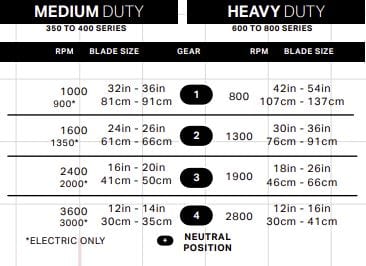

1st Gear Blade Size 1st Gear Blade Shaft Speed | 30" 900 RPM |
2nd Gear Blade Size 2nd Gear Blade Shaft Speed | 24"-26" 1350 RPM |
3rd Gear Blade Size 3rd Gear Blade Shaft Speed | 16"-20" 2000 RPM |
4th Gear Blade Size 4th Gear Blade Shaft Speed | 12"-14" 3000 RPM |
Blade shaft diameter | 2" |
Blade arbor size | 1" with single drive pin |
Arbor diameter | 4" |
Blade mounting | Right or left |
Blade raise / lower | Electro-hydraulic pump |
Transmission | Hydrostatic |
Drive speed | 0-240 feet per minute |
Light Kit | Yes |
Weight | 1100 lbs. |
