Shibuya TS-165 PRO Angle Base Core Drill Rig
Regular price
$2,921.00
Regular price
Sale price
$2,921.00
Unit price
per
Shipping calculated at checkout.
Sku:
DR0052

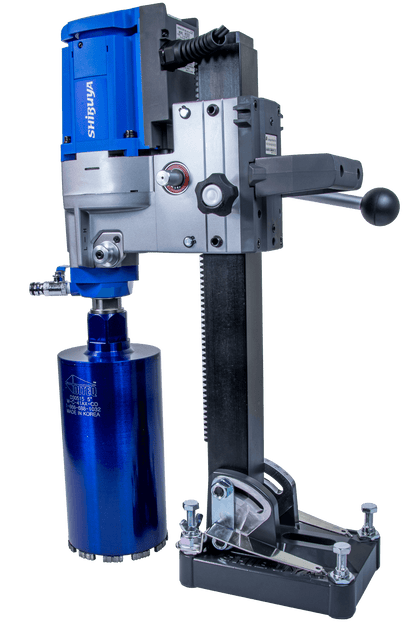

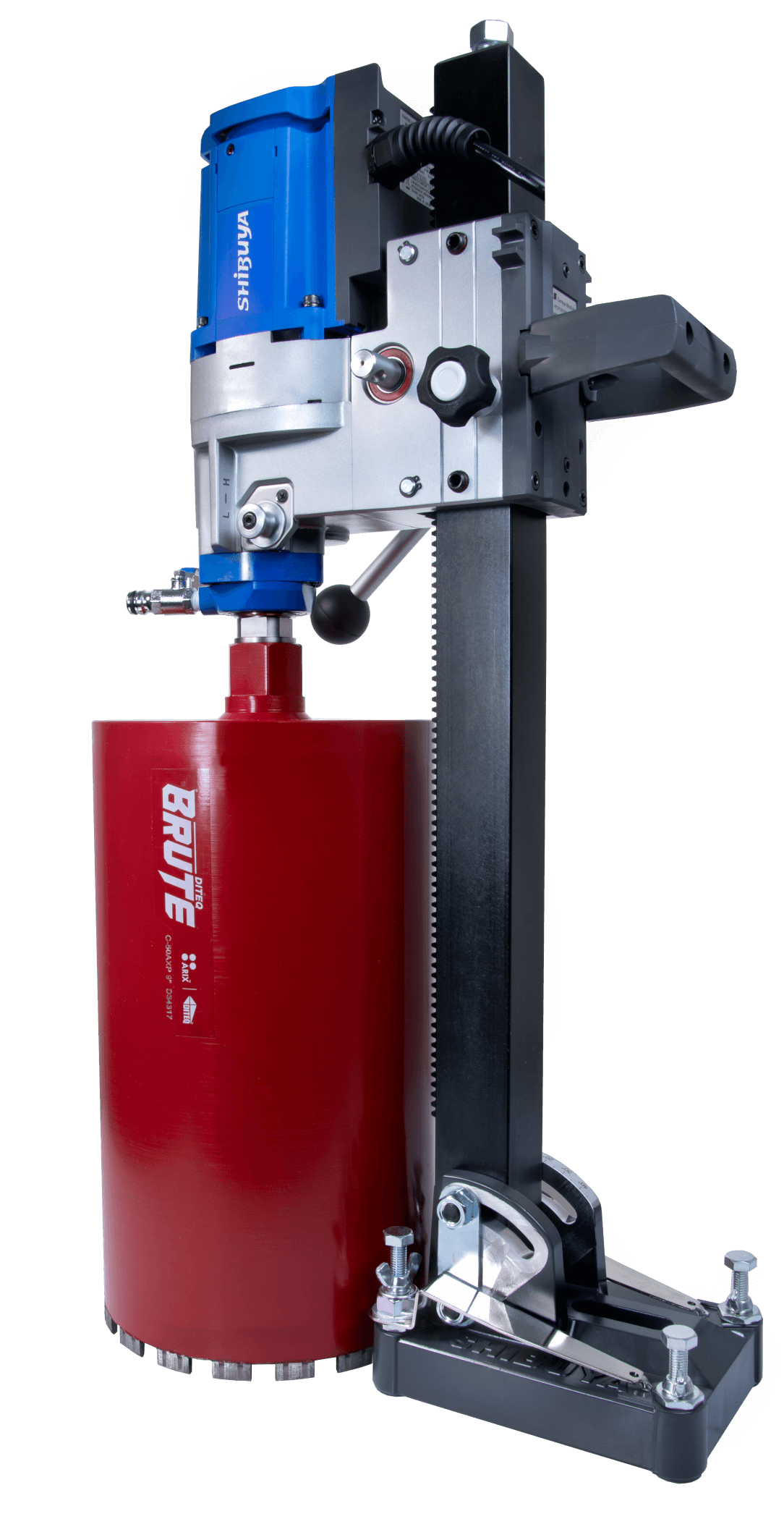

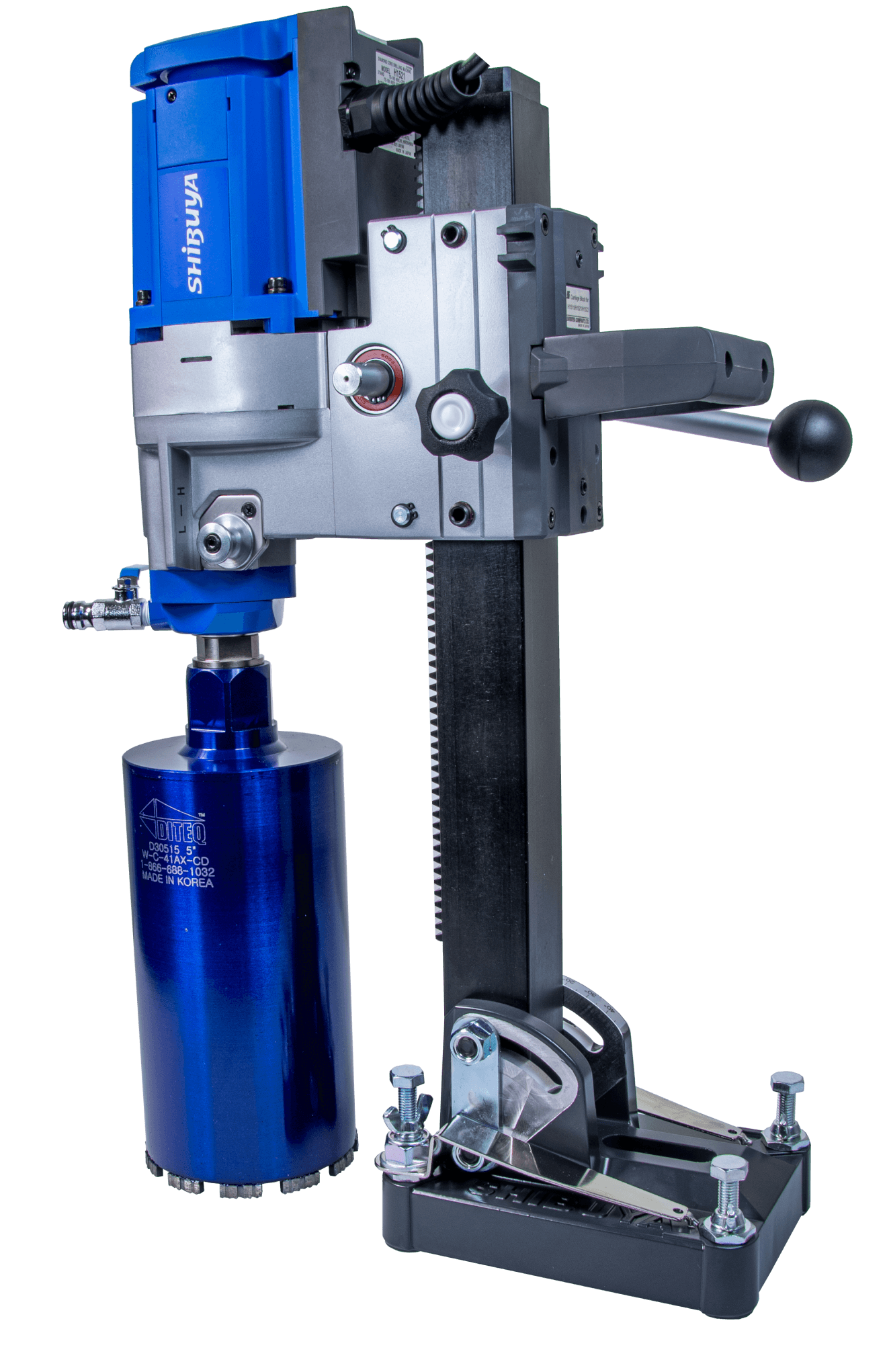

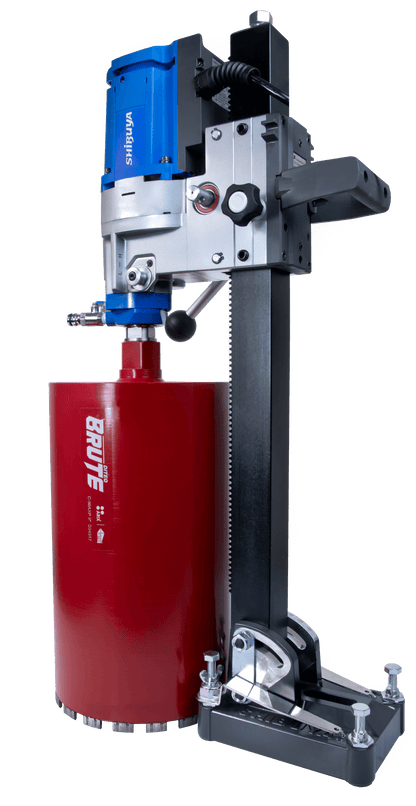

Shibuya TS-165 PRO Angle-Base Core Drill Rig — a compact, professional 2-speed wet core drilling system for concrete, masonry, and reinforced slabs. Drills up to a 10" bit with a Japanese-built H-1521 motor, two-piece angling column, and included slurry/water ring and carrying case.
Notified by email when this product becomes available
Shibuya TS-165 PRO Angle Base Core..
$2,921.00
Shibuya TS-165 PRO Angle-Base Core Drill Rig — a compact, professional 2-speed wet core drilling system for concrete, masonry, and reinforced slabs. Drills up to a 10" bit with a Japanese-built H-1521 motor, two-piece angling column, and included slurry/water ring and carrying case.
Features & Benefits:
- 10" maximum bit capacity for a wide range of coring jobs
- 2-speed motor (750 / 1150 RPM no-load) matches RPM to bit diameter
- 1700-watt, 15-amp electric motor runs on standard 115V power
- Two-piece column (23.5" / 39.4") angles and shortens for tight spaces
- Angle base with included water/slurry ring for clean wet cutting

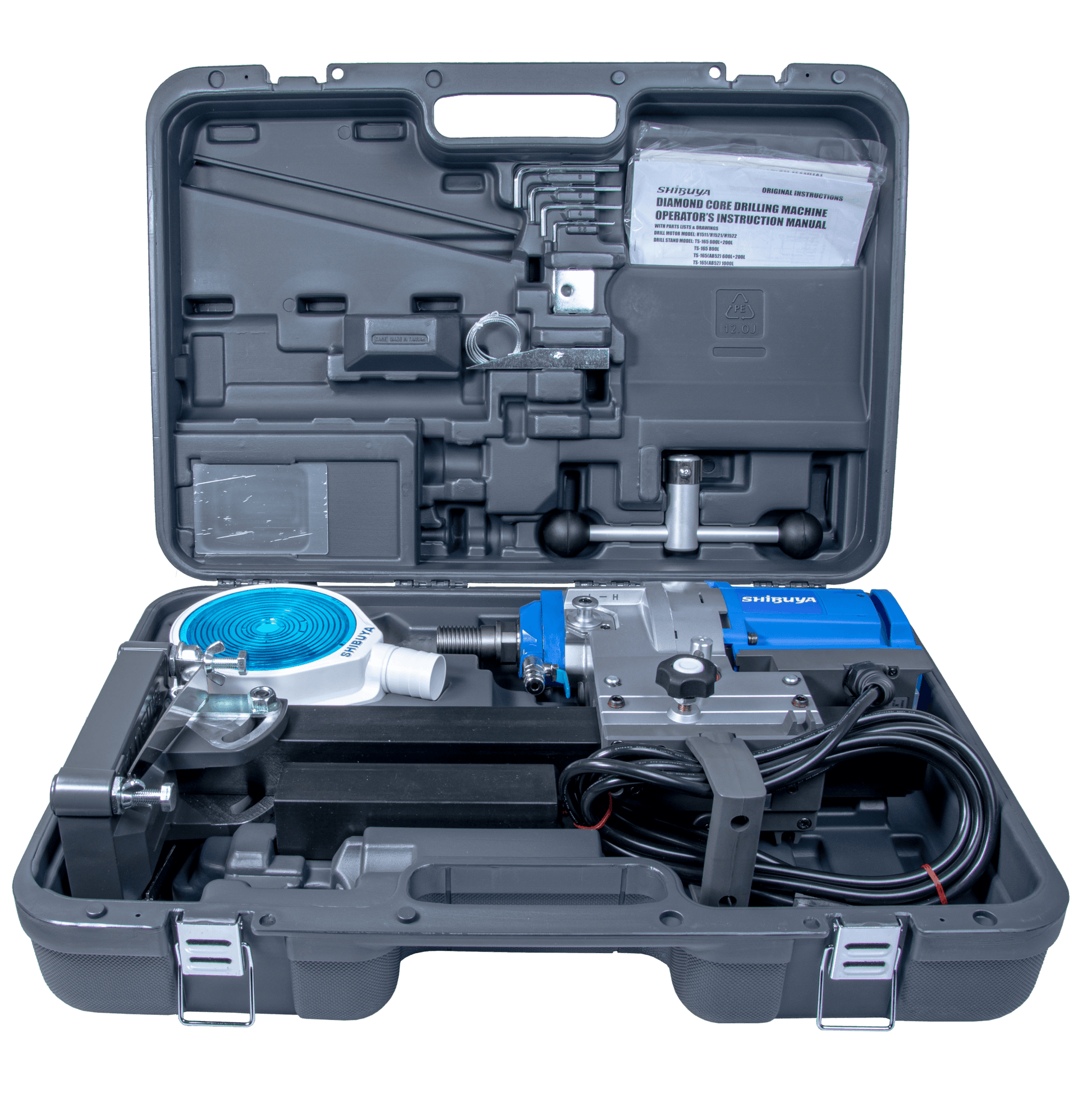

- Heavy-duty carrying case included for transport and storage
- 1-1/4"-7 spindle thread; 19" drilling stroke
- Backed by a 2-year warranty — made in Japan
| Model | TS-165 PRO |
|---|---|
| Motor | H-1521 |
| Power Type | Electric |
| Voltage | 110V - 120V |
| Amperage | 15 Amps |
| Power | 1700 Watts |
| Drill Speeds | 2-Speed |
| RPM (No Load) | 750 / 1150 RPM |
| RPM (Rated Load) | 520 / 790 RPM |
| Max Bit Capacity | 10" |
| Column Length | 23.5" / 39.4" (Two-Piece) |
| Column Size | 2" x 2" Hybrid |
| Drilling Stroke | 19" |
| Base Style | Angle Base |
| Base Size | 5-3/4" x 8" |
| Spindle Thread | 1-1/4"-7 |
| Water Ring | Included |
| Carrying Case | Included |
| Warranty | 2 Years |
| Made In | Japan |
