Vendor: Shibuya

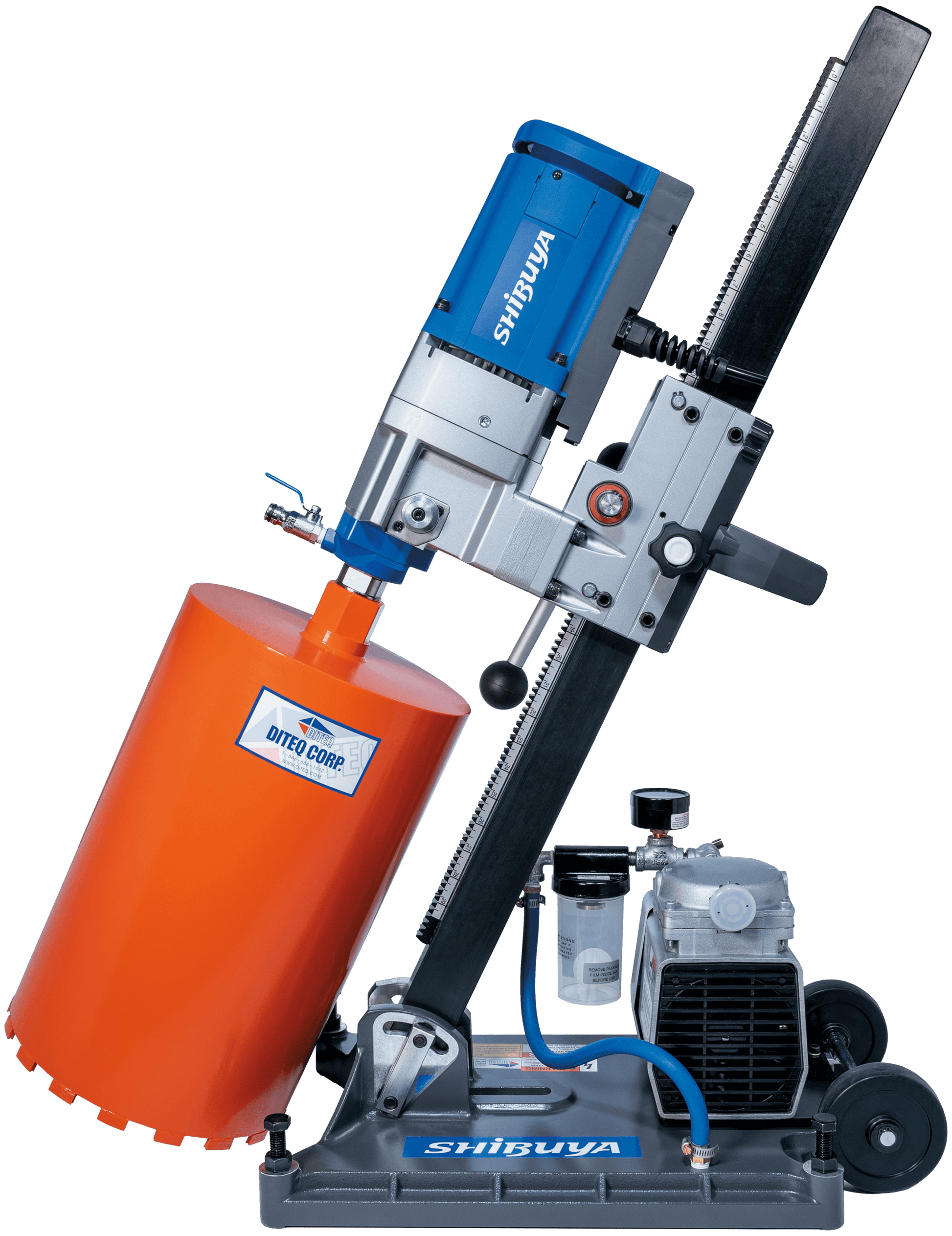

Shibuya TS-255 PRO ABV Vacuum Base Core Drill Rig
Regular price
$4,830.00
Regular price
Sale price
$4,830.00
Unit price
per
Shipping calculated at checkout.
Sku:
DR0068
Shibuya TS-255 PRO ABV Core Drill Rig — the angle-vacuum-base configuration with an included Gast vacuum pump for fast, anchor-free setup on flat surfaces. Tilts for angled coring and drills up to 12" vertical (10" angled) with the 2300-watt H-2021 motor.
Notified by email when this product becomes available
Shibuya TS-255 PRO ABV Vacuum Base..
$4,830.00
Shibuya TS-255 PRO ABV Core Drill Rig — the angle-vacuum-base configuration with an included Gast vacuum pump for fast, anchor-free setup on flat surfaces. Tilts for angled coring and drills up to 12" vertical (10" angled) with the 2300-watt H-2021 motor.
Features & Benefits:
- 12" vertical / 10" angled maximum bit capacity
- ABV angle vacuum base with included Gast vacuum pump — mount without drilling an anchor
- 2-speed motor (450 / 950 RPM no-load), 2300 watts, 115V/20A
- Tall 39.4" (1000mm) hybrid column with 26" drilling stroke
- Wheeled base for jobsite mobility
- 1-1/4"-7 spindle thread; 2-year warranty; made in Japan
| Model | TS-255 PRO ABV |
|---|---|
| Motor | H-2021 |
| Power Type | Electric |
| Voltage | 110V - 120V |
| Amperage | 20 Amps |
| Power | 2300 Watts |
| Drill Speeds | 2-Speed |
| RPM (No Load) | 450 / 950 RPM |
| Max Bit (Vertical) | 12" (with spacers) |
| Max Bit (Angled) | 10" |
| Column Length | 39.4" / 1000mm |
| Drilling Stroke | 26" |
| Base Style | ABV Angle Vacuum Base |
| Vacuum Pump | Included (Gast) |
| Wheels | Yes |
| Spindle Thread | 1-1/4"-7 |
| Warranty | 2 Years |
| Made In | Japan |
