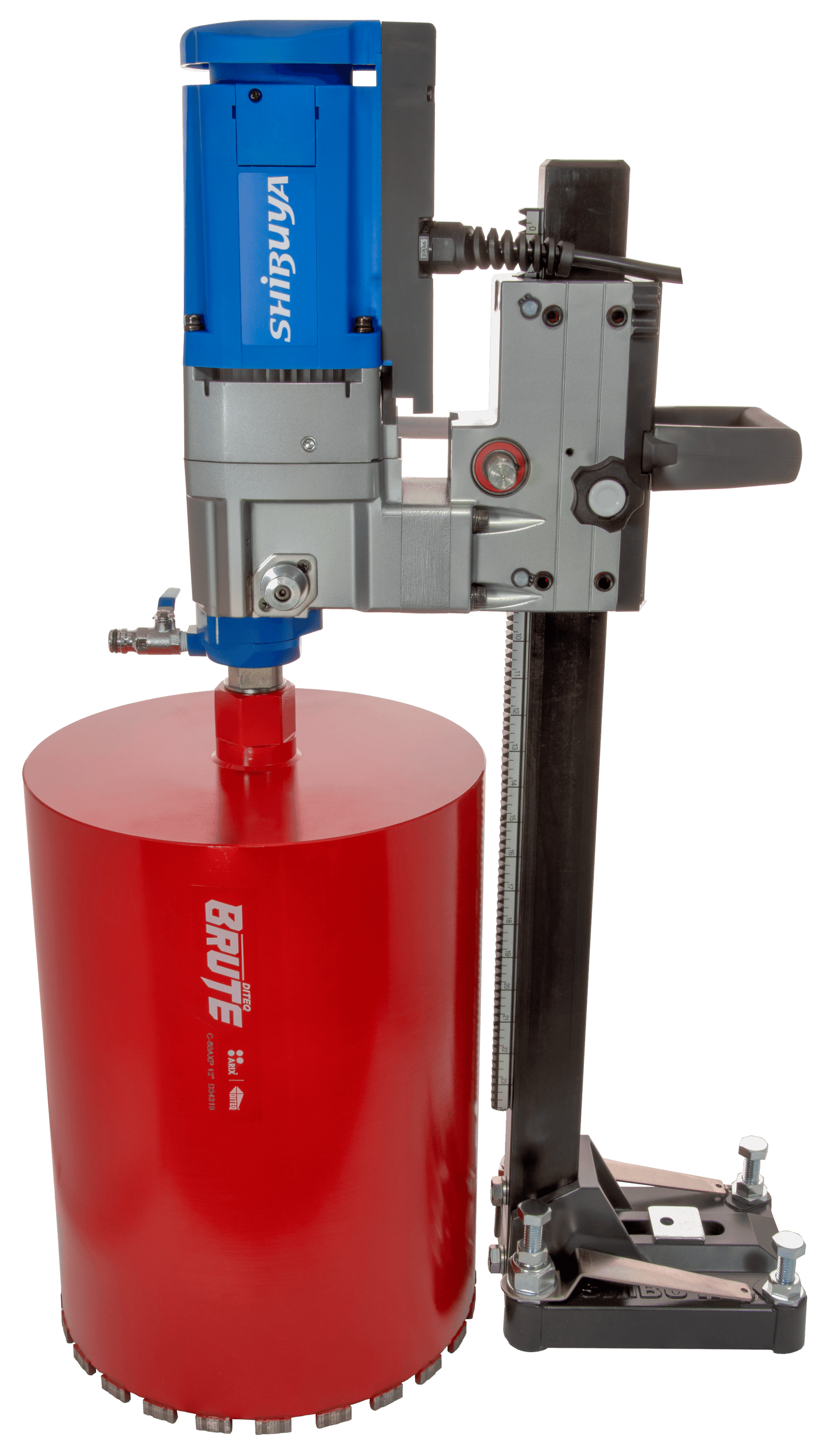

Shibuya TS-255 PRO Anchor Base Core Drill Rig
Regular price
$3,289.00
Regular price
Sale price
$3,289.00
Unit price
per
Shipping calculated at checkout.
Sku:
DR0056
Shibuya TS-255 PRO Anchor-Base Core Drill Rig — a heavy-duty 2-speed wet core drilling system built for production coring in concrete and reinforced slabs. The Japanese-built H-2021 motor delivers 2300 watts and drills up to 12" bits, with an included 7" slurry/dust-control ring for clean wet cutting.
Notified by email when this product becomes available
Shibuya TS-255 PRO Anchor Base Core..
$3,289.00
Shibuya TS-255 PRO Anchor-Base Core Drill Rig — a heavy-duty 2-speed wet core drilling system built for production coring in concrete and reinforced slabs. The Japanese-built H-2021 motor delivers 2300 watts and drills up to 12" bits, with an included 7" slurry/dust-control ring for clean wet cutting.
Features & Benefits:
- 12" maximum bit capacity (with included spacers)
- 2-speed motor (450 / 950 RPM no-load) for matching RPM to bit size
- 2300-watt, 20-amp motor on standard 115V power
- Rigid 31.5" (800mm) two-piece hybrid column
- Included 7" WCR slurry/dust-control ring
- 1-1/4"-7 spindle thread; 19" drilling stroke
- Backed by a 2-year warranty — made in Japan
| Model | TS-255 PRO |
|---|---|
| Motor | H-2021 |
| Power Type | Electric |
| Voltage | 110V - 120V |
| Amperage | 20 Amps |
| Power | 2300 Watts |
| Drill Speeds | 2-Speed |
| RPM (No Load) | 450 / 950 RPM |
| RPM (Rated Load) | 310 / 680 RPM |
| Max Bit Capacity | 12" (with spacers) |
| Column Length | 31.5" / 800mm |
| Column Size | 2" x 2" Hybrid |
| Drilling Stroke | 19" |
| Base Style | Anchor Base |
| Water Ring | 7" WCR Included |
| Spindle Thread | 1-1/4"-7 |
| Warranty | 2 Years |
| Made In | Japan |
