Vendor: Shibuya

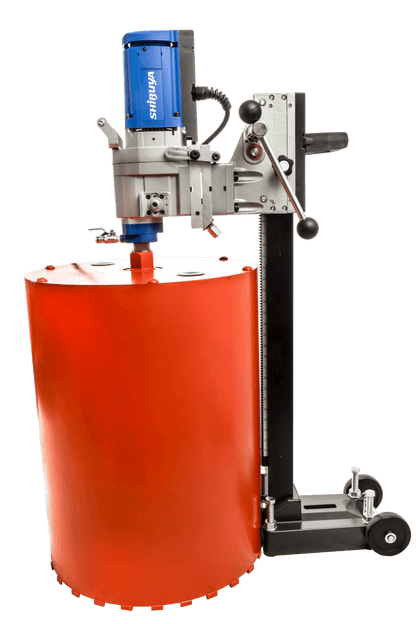

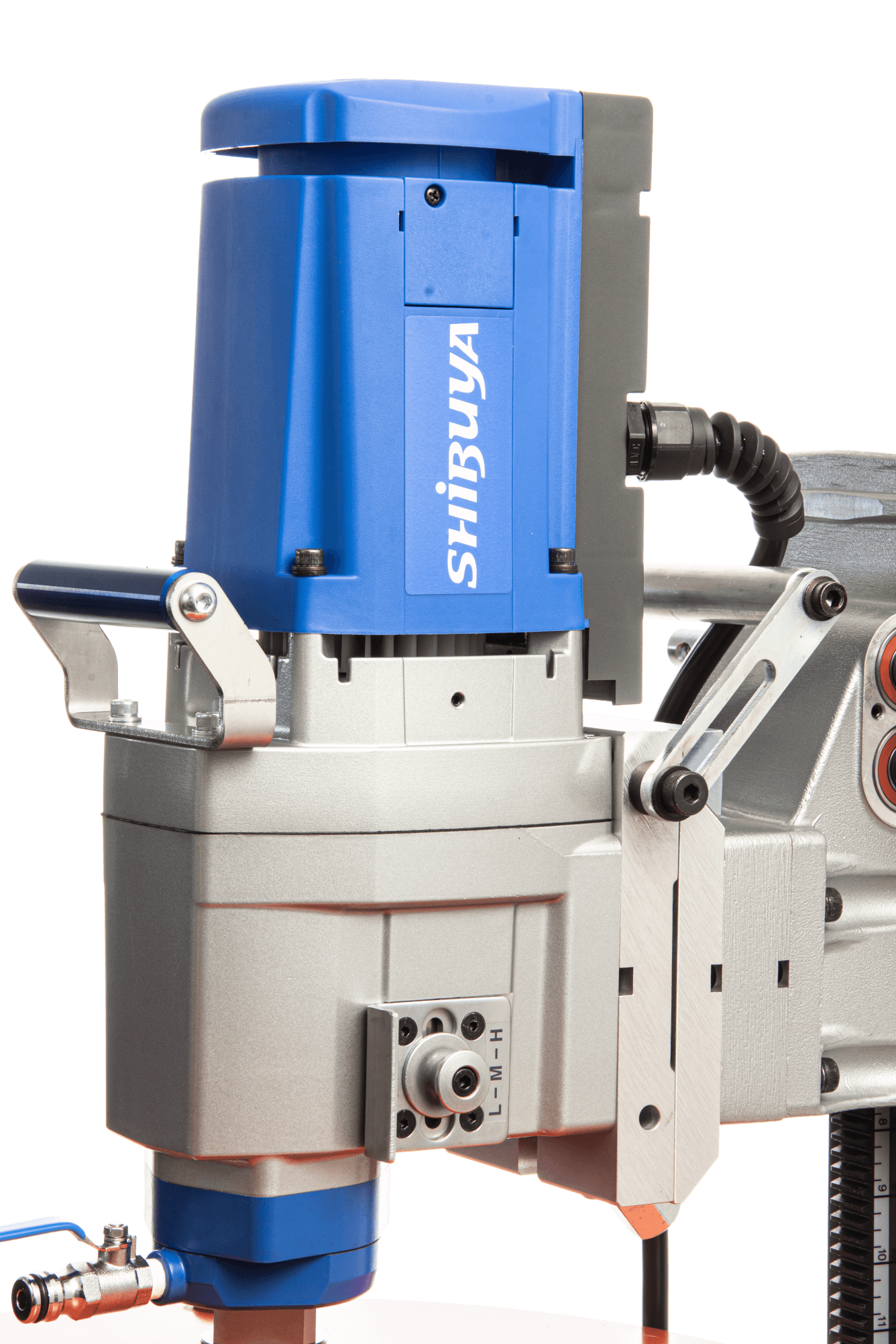

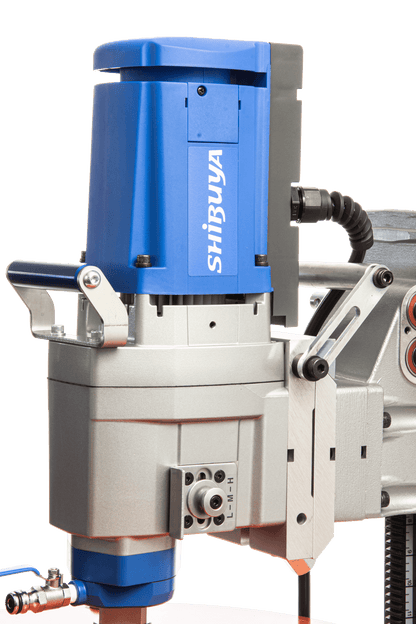

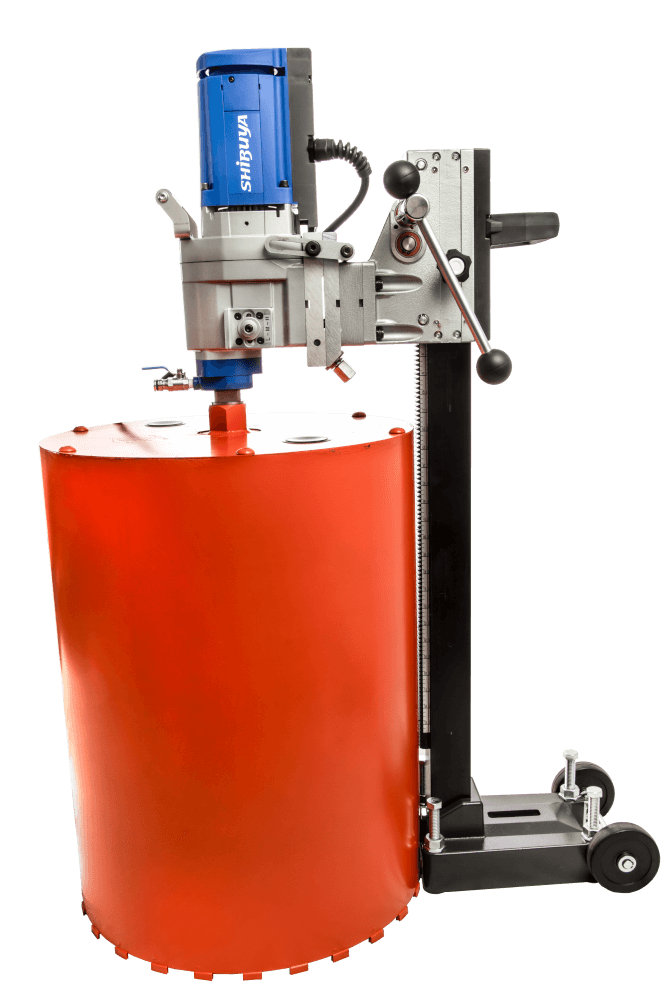

Shibuya TS-405 PRO Anchor Base Core Drill Rig
Regular price
$5,026.00
Regular price
Sale price
$5,026.00
Unit price
per
Shipping calculated at checkout.
Sku:
DR1078
Shibuya TS-405 PRO Anchor-Base Core Drill Rig — a large-diameter production rig powered by the 3450-watt H-2231 motor. Three speeds and a heavy 2-3/8" hybrid column handle bits up to 18" (20.75" with the optional 2-3/8" spacer, P/N 152023).
Notified by email when this product becomes available
Shibuya TS-405 PRO Anchor Base Core..
$5,026.00
Shibuya TS-405 PRO Anchor-Base Core Drill Rig — a large-diameter production rig powered by the 3450-watt H-2231 motor. Three speeds and a heavy 2-3/8" hybrid column handle bits up to 18" (20.75" with the optional 2-3/8" spacer, P/N 152023).
Features & Benefits:
- 18" maximum bit capacity (20.75" with optional spacer)
- 3-speed motor (300 / 700 / 1400 RPM no-load), 3450 watts, 120V/30A
- Quick-disconnect motor mount included
- Heavy 2-3/8" square hybrid column, 39.4" (1000mm), 24" stroke
- Wheeled fixed base for stability and mobility
- 1-1/4"-7 spindle thread; 2-year warranty; made in Japan
| Model | TS-405 PRO |
|---|---|
| Motor | H-2231 |
| Power Type | Electric |
| Voltage | 110V - 120V |
| Amperage | 30 Amps |
| Power | 3450 Watts |
| Drill Speeds | 3-Speed |
| RPM (No Load) | 300 / 700 / 1400 RPM |
| Max Bit Capacity | 18" (20.75" w/ optional spacer) |
| Quick Disconnect | Included |
| Column Length | 39.4" / 1000mm |
| Column Size | 2-3/8" x 2-3/8" Hybrid |
| Drilling Stroke | 24" |
| Base Style | Anchor Base |
| Wheels | Yes |
| Spindle Thread | 1-1/4"-7 |
| Warranty | 2 Years |
| Made In | Japan |
